• SUCTION HOSE

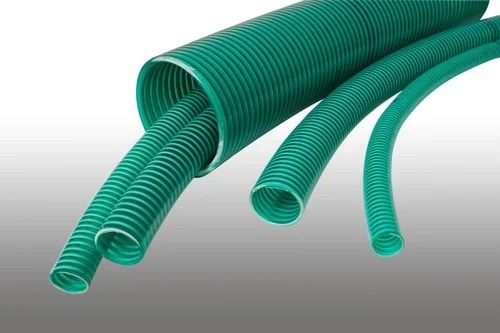

PVC SUCTION HOSE
Medium Duty Suction Hose is tough, light and easy to deliver water for Irrigation purpose in agriculture, light acids, saline Water, alkalies and other Chemicals except Solvent. This hose is manufactured by our skilled professionals using top quality Raw Material and sophisticated technology following the set industry standards. Commonly used in agriculture, construction and waste managment. Medium Duty Suction Hose is good resistance to saline water, light acids. It designed with high technology with the industry standards.
MEDIUM DUTY PVC SUCTION HOSE
| ID | Wall Thickness | Working Pressure | Brusting Pressure | Mtrs. | |
| mm | inch | mm | kg/cm² | kg/cm² | |
| 20* | 3/4 | 3.0 | 10.5 | 20.0 | 30/50 |
| 25* | 1 | 3.5 | 9.0 | 18.0 | 30/50 |
| 40** | 1½ | 4.0 | 7.5 | 15.0 | 30/50 |
| 50** | 2 | 4.5 | 6.0 | 15.0 | 30/50 |
| 65** | 2½ | 4.5 | 5.5 | 13.0 | 30/50 |
| 75*** | 3 | 5.0 | 5.0 | 13.0 | 30/50 |
| 90*** | 3½ | 5.0 | 5.0 | 12.0 | 30 |
| 100*** | 4 | 6.0 | 4.5 | 10.0 | 30 |
| 125**** | 5 | 7.0 | 3.0 | 9.0 | 15/18 |
| 150**** | 6 | 7.5 | 3.0 | 9.0 | 15/18 |
| 200**** | 8 | 9.5 | 2.5 | 7.0 | 6/10 |
General pumping and suction application in agriculture, industry and construction
GREEN
GREY
TOUCHLIME
BLUE
